BOM
购物车| 图片 | 型号 | 库存 | 数量 | 数据表 | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KLT1C12DC12RELAY SPDT 12A 12V |
3627 |
加入购物车立即询价 |
Datasheet |
Tube | KLT | Active | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 277VAC - Max | 30 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 1.2 VDC | 8 ms | 5 ms | -40°C ~ 85°C | Silver Alloy |
|
HAT901ASDC24RELAY SPST 30A 24V |
460 |
加入购物车立即询价 |
Datasheet |
Tube | HAT | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 36.4 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Alloy |
|
HAT901CSDC24RELAY SPDT 30A 24V |
2584 |
加入购物车立即询价 |
Datasheet |
Tube | HAT | Active | Through Hole | 24VDC | SPDT (1 Form C) | 30 A | 277VAC - Max | 36.4 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Alloy |
|
HAT902CSDC12RELAY SPDT 30A 12V |
3772 |
加入购物车立即询价 |
Datasheet |
Tube | HAT | Active | Through Hole | 12VDC | SPDT (1 Form C) | 30 A | 277VAC - Max | 77.4 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | - | Class B | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Alloy |
|
HATF903ASDC12RELAY SPST 30A 12V |
300 |
加入购物车立即询价 |
Datasheet |
Tube | HAT | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 77.4 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 105°C | Silver Alloy |
|
PR2C10DC12KRELAY DPDT 10A 12V |
150 |
加入购物车立即询价 |
Datasheet |
Tube | PR | Active | Through Hole | 12VDC | DPDT (2 Form C) | 10 A | 277VAC - Max | 44 mA | Non Latching | - | PC Pin | - | Class B | 9.6 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy |
|
SPR1C12DC12KRELAY SPDT 12A 12V |
160 |
加入购物车立即询价 |
Datasheet |
Tube | SPR | Active | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 277VAC - Max | 33.3 mA | Non Latching | - | PC Pin | - | Class B | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Alloy |
|

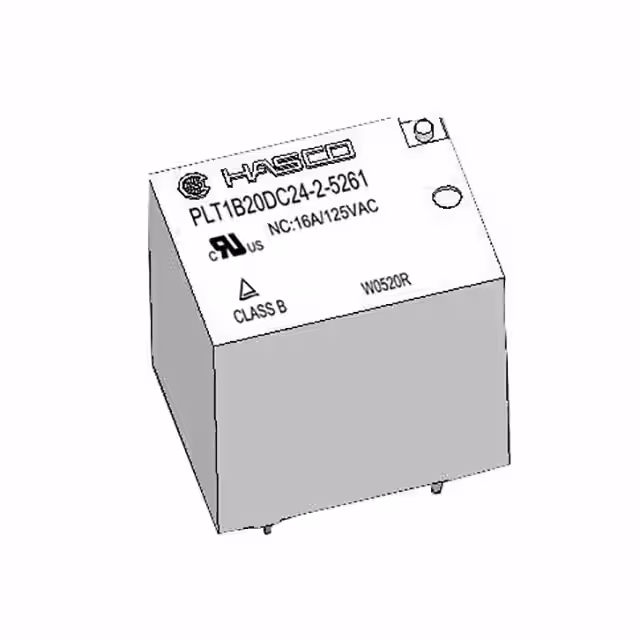

PLT1B20DC24-2-5261RELAY SPST 20A 24V |
210 |
加入购物车立即询价 |
Datasheet |
Tube | PLT | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 20 A | 277VAC - Max | 15 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy |
|
HPKF1A35DC12S1.5RELAY SPST 35A 12V |
210 |
加入购物车立即询价 |
Datasheet |
Tube | HPK | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 35 A | 277VAC - Max | 150 mA | Non Latching | - | PC Pin | - | Class F | 9.6 VDC | 0.6 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
SPRF1C16DC12K-2LRELAY SPDT 16A 12V |
200 |
加入购物车立即询价 |
Datasheet |
Tube | SPR | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 277VAC - Max | 50 mA | Latching, Dual Coil | - | PC Pin | - | Class F | 9 VDC | - | 8 ms | 8 ms | -40°C ~ 70°C | Silver Alloy |
|

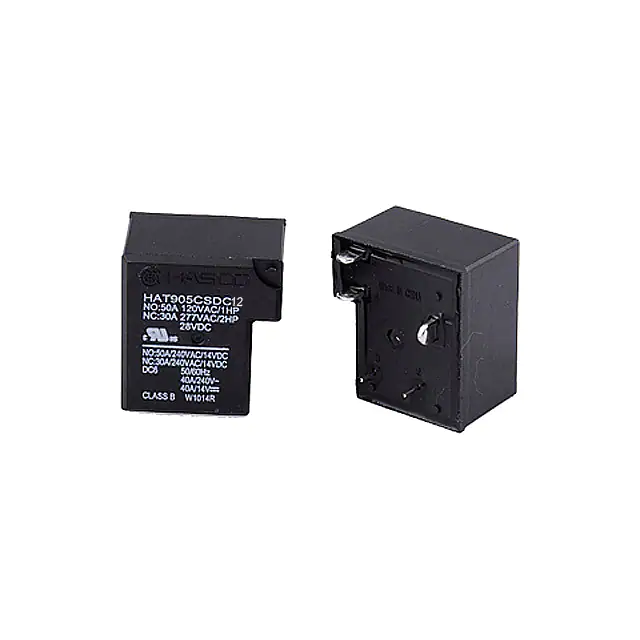

HAT905CSDC12RELAY SPDT 50A 12V |
3680 |
加入购物车立即询价 |
Datasheet |
Tube | HAT | Active | Through Hole | 12VDC | SPDT (1 Form C) | 50 A | 277VAC - Max | 100 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -20°C ~ 85°C | Silver Alloy |
