购物车| 图片 | 型号 | 库存 | 数量 | 数据表 | Packaging | Series | ProductStatus | CoilType | CoilCurrent | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | Features | MountingType | TerminationStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A171AS12VDC.96RELAY AUTO SPST 20A 12VDC |
810 |
加入购物车立即询价 |
Datasheet |
Tray | A17 | Active | Non Latching | 80 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin |
|
A171AS24VDC.96RELAY AUTO SPST 20A 24VDC |
810 |
加入购物车立即询价 |
Datasheet |
Tray | A17 | Active | Non Latching | 40 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin |
|
PC792A-1C-C2-24C-N-X20A SPDT MINI ISO RELAY 24V BRKT |
2661 |
加入购物车立即询价 |
Datasheet |
Bag | - | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 20 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 2 ms | - | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
A11CSQ6VDC1.2RRELAY AUTOMOTIVE 30A SPDT 1C 6VD |
492 |
加入购物车立即询价 |
Datasheet |
Tube | A1 | Active | Non Latching | 200 mA | 6VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes |
|
A11CSQ12VDC1.5DRELAY AUTO SPDT 12VDC QC DIODE |
490 |
加入购物车立即询价 |
Datasheet |
Tube | A1 | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187 (4.7mm) |
|
A1M1CSQ12VDCRRELAY AUTOMOTIVE 40A SPDT 1C 12V |
483 |
加入购物车立即询价 |
Datasheet |
Tube | A1M | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 40 A | 28VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes |
|
|
A11CSQ6VDC1.2DRELAY AUTOMOTIVE 30A SPDT 1C 6VD |
481 |
加入购物车立即询价 |
Datasheet |
Tube | A1 | Active | Non Latching | 200 mA | 6VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes |
|
|
A1M1CSQ12VDCDRELAY AUTOMOTIVE 40A SPDT 1C 12V |
449 |
加入购物车立即询价 |
Datasheet |
Tube | A1M | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 40 A | 28VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes |
|

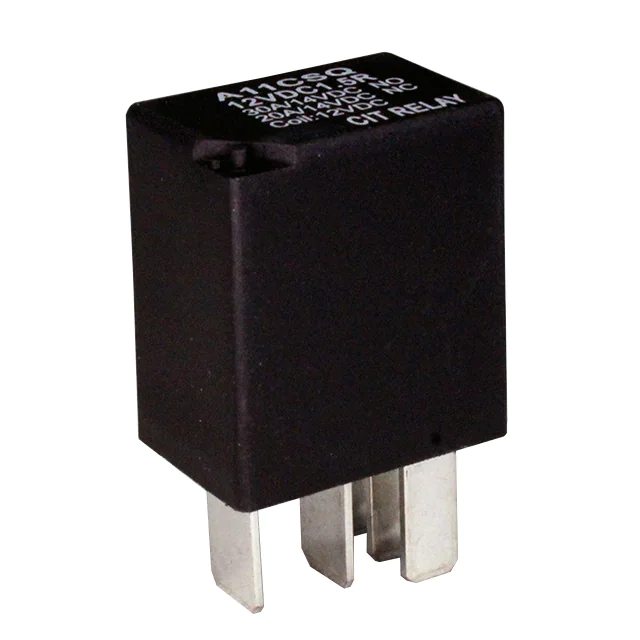

A11CSQ12VDC1.5RRELAY AUTO SPDT 12VDC QC RESISTO |
401 |
加入购物车立即询价 |
Datasheet |
Tube | A1 | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187 (4.7mm) |
|
A11CSP24VDC1.5RELAY AUTO SPDT 24VDC PCB |
500 |
加入购物车立即询价 |
Datasheet |
Tube | A1 | Active | Non Latching | 62.5 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | PC Pin |
|
A11CSQ24VDC1.5RELAY AUTO SPDT 24VDC QC |
494 |
加入购物车立即询价 |
Datasheet |
Tube | A1 | Active | Non Latching | 62.5 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187 (4.7mm) |
|
|
A1M1CSQ24VDCRELAY AUTOMOTIVE 40A SPDT 1C 24V |
485 |
加入购物车立即询价 |
Datasheet |
Tube | A1M | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 40 A | 28VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes |
|
A21CSP12VDC1.6DRELAY AUTO SPDT 12VDC PCB DIODE |
2339 |
加入购物车立即询价 |
Datasheet |
Tray | A2 | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin |
|
PC792A-1C-C-12S-RN-X40A SPDT SEALED MINI ISO RELAY 1 |
500 |
加入购物车立即询价 |
Datasheet |
Box | - | Active | Non Latching | 150.9 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
A2M1CSQ12VDC1.6RRELAY AUTO BRACKET SPDT 12VDC QC |
192 |
加入购物车立即询价 |
Datasheet |
Tray | A2 | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
A11CSP24VDC1.5DRELAY AUTO SPDT 24VDC PCB DIODE |
500 |
加入购物车立即询价 |
Datasheet |
Tube | A1 | Active | Non Latching | 62.5 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin |
|
A11CSQ24VDC1.5RRELAY AUTO SPDT 24VDC QC RESISTO |
500 |
加入购物车立即询价 |
Datasheet |
Tube | A1 | Active | Non Latching | 62.5 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187 (4.7mm) |
|
|
A1M1CSQ24VDCRRELAY AUTOMOTIVE 40A SPDT 1C 24V |
500 |
加入购物车立即询价 |
Datasheet |
Tube | A1M | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 40 A | 28VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes |
|
A11CSQ24VDC1.5DRELAY AUTO SPDT 24VDC QC DIODE |
390 |
加入购物车立即询价 |
Datasheet |
Tube | A1 | Active | Non Latching | 62.5 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187 (4.7mm) |
|
|
A1M1CSQ24VDCDRELAY AUTOMOTIVE 40A SPDT 1C 24V |
345 |
加入购物车立即询价 |
Datasheet |
Tube | A1M | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 40 A | 28VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes |
