购物车| 图片 | 型号 | 库存 | 数量 | 数据表 | Packaging | Series | ProductStatus | CoilType | CoilCurrent | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | Features | MountingType | TerminationStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

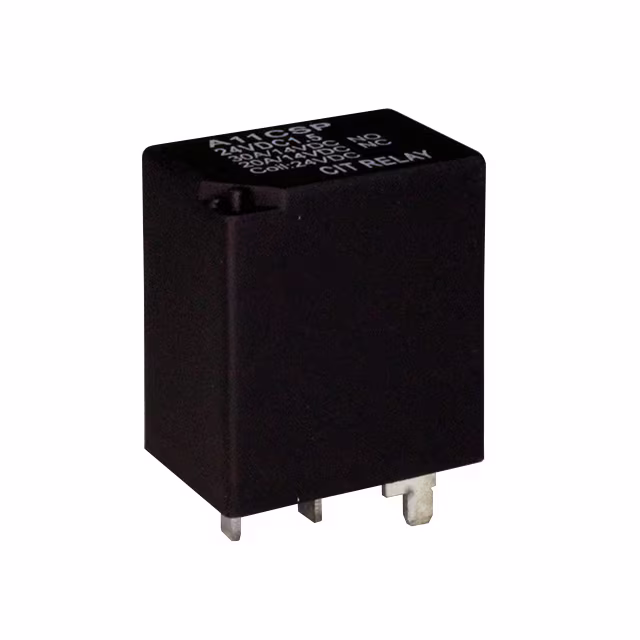

A11CSP24VDC1.5RRELAY AUTO SPDT 24VDC PCB RESIST |
3618 |
加入购物车立即询价 |
Datasheet |
Tube | A1 | Active | Non Latching | 62.5 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Through Hole | PC Pin |
|
A21CSQ48VDC1.6DRELAY AUTOMOTIVE SPDT 1C 48VDC 1 |
2886 |
加入购物车立即询价 |
Datasheet |
Tray | A2 | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
A171AS24VDC.96DRELAY AUTO SPST 20A 24VDC DIODE |
3575 |
加入购物车立即询价 |
Datasheet |
Tray | A17 | Active | Non Latching | 40 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin |
|
A2M1CSQ24VDC1.6RRELAY AUTO BRACKET SPDT 24VDC QC |
3218 |
加入购物车立即询价 |
Datasheet |
Tray | A2 | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
A61AS24VDC1.3RELAY AUTO SPST 30A 24VDC PCB |
3366 |
加入购物车立即询价 |
Datasheet |
Tray | A6 | Active | Non Latching | 55 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin |
|
A2M1CSQ24VDC1.6DRELAY AUTO BRACKET SPDT 24VDC QC |
3175 |
加入购物车立即询价 |
Datasheet |
Tray | A2 | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
A61AS24VDC1.3DRELAY AUTO SPST 30A 24VDC PCB DI |
3777 |
加入购物车立即询价 |
Datasheet |
Tray | A6 | Active | Non Latching | 55 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Diode, Sealed - Fully | Through Hole | PC Pin |
|
A61AS24VDC.9DRELAY AUTO SPST 30A 24VDC PCB DI |
3359 |
加入购物车立即询价 |
Datasheet |
Tray | A6 | Active | Non Latching | 37.5 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Diode, Sealed - Fully | Through Hole | PC Pin |
|
A61AS24VDC.9RRELAY AUTO SPST 30A 24VDC PCB |
3467 |
加入购物车立即询价 |
Datasheet |
Tray | A6 | Active | Non Latching | 37.5 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Through Hole | PC Pin |
|

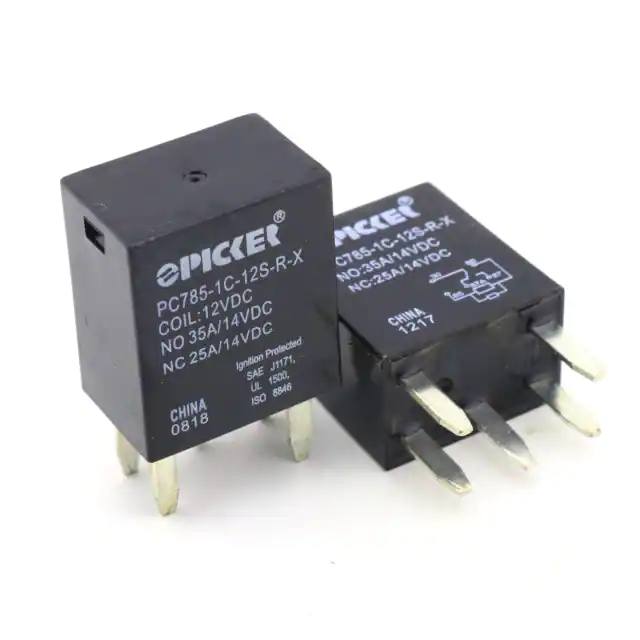

PC785-1C-12S-R-X35 A MICRO ISO AUTOMOTIVE RELAY |
3256 |
加入购物车立即询价 |
Datasheet |
Tube | - | Active | Non Latching | 128 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.2 VDC | 1.2 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Socketable | Plug In |
|
A171AHS24VDC.96DRELAY AUTO SPST HD 30A 24VDC DIO |
3879 |
加入购物车立即询价 |
Datasheet |
Tray | A17 | Active | Non Latching | 40 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin |
|
CP1H-N-12VCP POWER RELAY 1 FORM C 12V |
3626 |
加入购物车立即询价 |
Datasheet |
Bulk | CP | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 6.5 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin |
|
A61CS12VDC.9RELAY AUTO SPDT 30A 12VDC PCB |
2495 |
加入购物车立即询价 |
Datasheet |
Tray | A6 | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin |
|

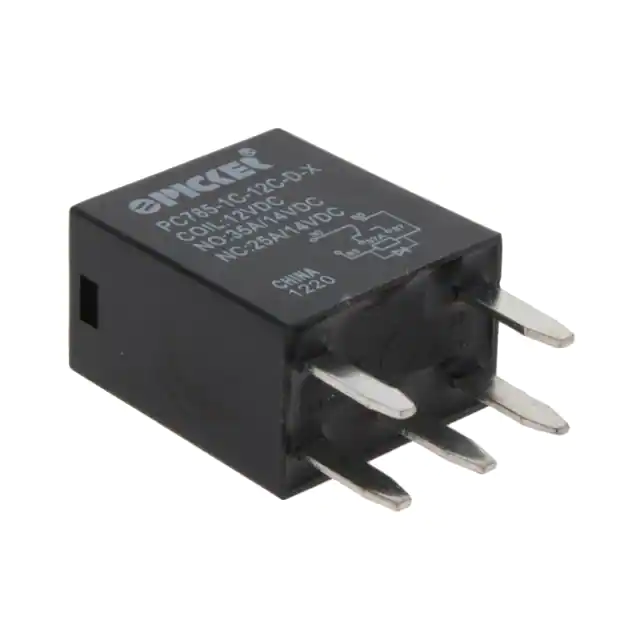

PC785-1C-12C-D-X35A SPDT ISO RELAY 12V DIO |
3596 |
加入购物车立即询价 |
Datasheet |
Tube | - | Active | Non Latching | 110 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.2 VDC | 1.2 VDC | 5 ms | 2 ms | Diode | Socketable | Plug In |
|

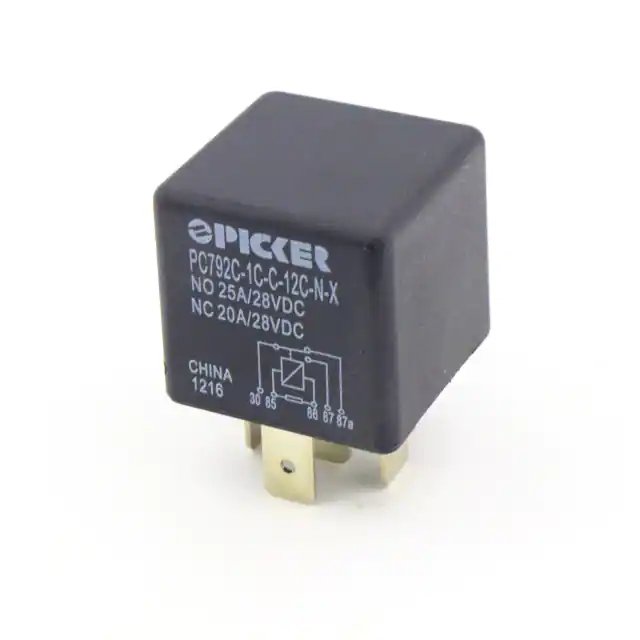

PC792C-1C-C-12C-N-X50A SPDT MINI ISO RELAY 12V |
2494 |
加入购物车立即询价 |
Datasheet |
Bag | - | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|

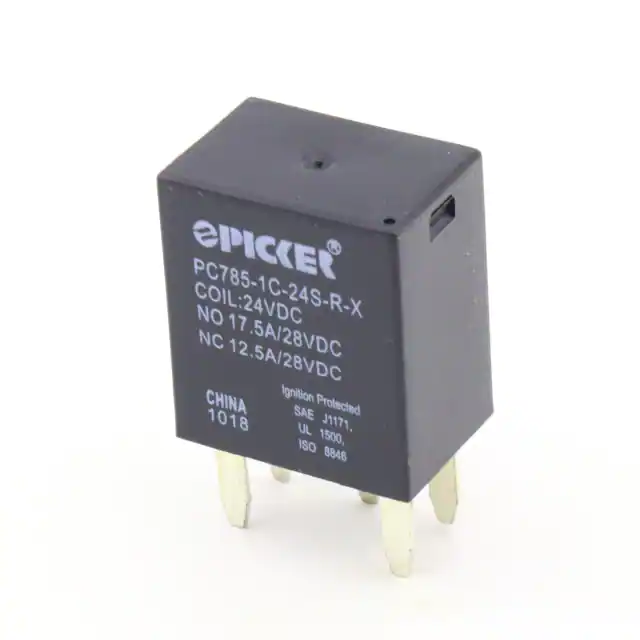

PC785-1C-24S-R-X17A SPDT ISO 280 RELAY 24V RES |
3685 |
加入购物车立即询价 |
Datasheet |
Tube | - | Active | Non Latching | 64 mA | 24VDC | SPDT (1 Form C) | 17 A | 75VDC - Max | 14.4 VDC | 2.4 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Socketable | Plug In |
|
A61CS12VDC1.3DRELAY AUTO SPDT 30A 12VDC PCB DI |
2940 |
加入购物车立即询价 |
Datasheet |
Tray | A6 | Active | Non Latching | 110.1 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Diode, Sealed - Fully | Through Hole | PC Pin |
|
A61CS12VDC.9RRELAY AUTO SPDT 30A 12VDC PCB |
3648 |
加入购物车立即询价 |
Datasheet |
Tray | A6 | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Through Hole | PC Pin |
|
A61CS12VDC.9DRELAY AUTO SPDT 30A 12VDC PCB DI |
3417 |
加入购物车立即询价 |
Datasheet |
Tray | A6 | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Diode, Sealed - Fully | Through Hole | PC Pin |
|

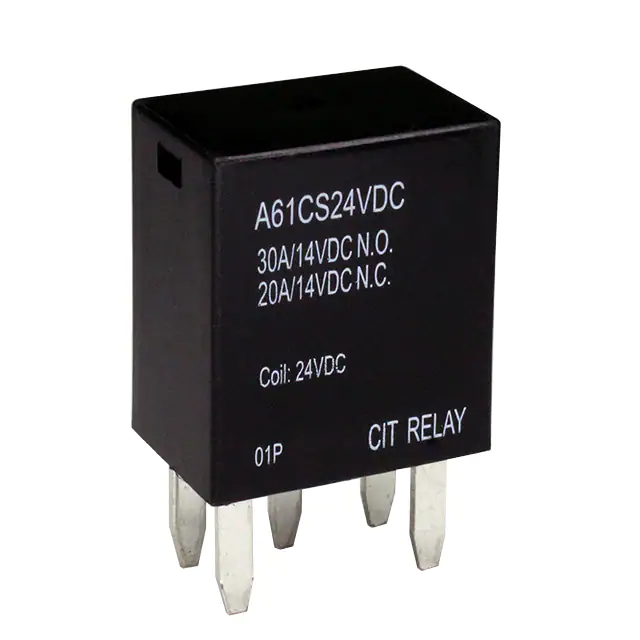

A61CS24VDC.9RELAY AUTO SPDT 30A 24VDC PCB |
2141 |
加入购物车立即询价 |
Datasheet |
Tray | A6 | Active | Non Latching | 37.5 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin |
