BOM
购物车| 图片 | 型号 | 库存 | 数量 | 数据表 | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J107F1AS125VDC.36RELAY GEN PURPOSE SPST 12A 5V |
3084 |
加入购物车立即询价 |
Datasheet |
Tube | J107F | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 12 A | 380VAC, 110VDC - Max | 71.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
|
J107F1CS123VDC.36RELAY GEN PURPOSE SPDT 12A 3V |
2987 |
加入购物车立即询价 |
Datasheet |
Tube | J107F | Active | Through Hole | 3VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 120 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 2.25 VDC | 0.3 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
|
J107F1CS125VDC.36RELAY GEN PURPOSE SPDT 12A 5V |
3683 |
加入购物车立即询价 |
Datasheet |
Tube | J107F | Active | Through Hole | 5VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 71.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
J107F1AS2012VDC.80RELAY GEN PURPOSE SPST 20A 12V |
3455 |
加入购物车立即询价 |
Datasheet |
Tube | J107F | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 380VAC, 110VDC - Max | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|

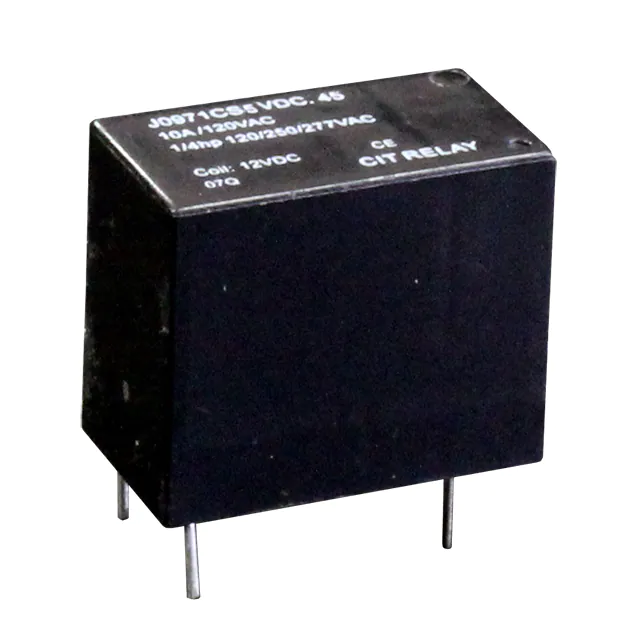

J0971CS5VDC.45RELAY GEN PURPOSE SPDT 10A 5V |
2225 |
加入购物车立即询价 |
Datasheet |
Tray | J097 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 277VAC - Max | 90.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
J0971CS24VDC.45RELAY GEN PURPOSE SPDT 10A 24V |
2761 |
加入购物车立即询价 |
Datasheet |
Tray | J097 | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 277VAC - Max | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 10 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
J104B2C12VDC.20SRELAY GEN PURPOSE DPDT 3A 12V |
3128 |
加入购物车立即询价 |
Datasheet |
Tube | J104 | Active | Through Hole | 12VDC | DPDT (2 Form C) | 3 A | 250VAC, 220VDC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 4.5 ms | 1.5 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) |
|
G5LE-1A DC24RELAY GEN PURPOSE SPST 10A 24V |
3359 |
加入购物车立即询价 |
Datasheet |
Tray | G5LE | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|

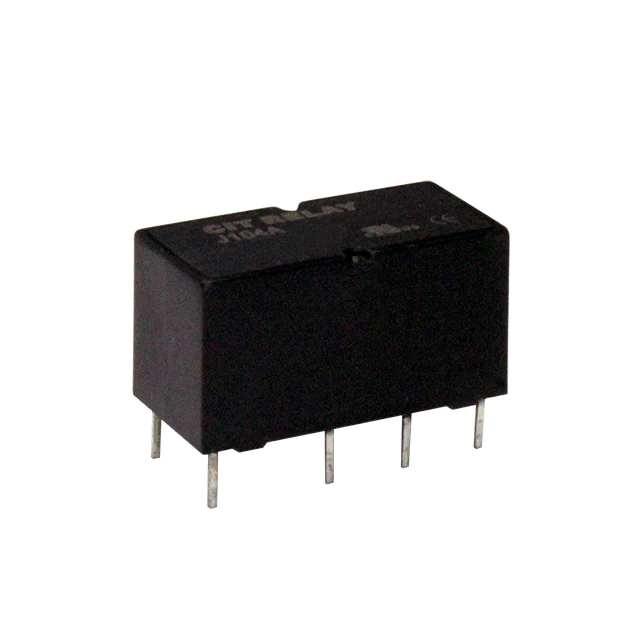

J104A2C12VDC.40SRELAY GEN PURPOSE DPDT 3A 12V |
3411 |
加入购物车立即询价 |
Datasheet |
Tube | J104 | Active | Through Hole | 12VDC | DPDT (2 Form C) | 3 A | 250VAC, 220VDC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 4.5 ms | 1.5 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) |
|
|
G5LE-1A DC12RELAY GEN PURPOSE SPST 10A 12V |
2975 |
加入购物车立即询价 |
Datasheet |
Tray | G5LE | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
J123F1A12VDC.36RELAY GEN PURPOSE SPST 20A 12V |
2646 |
加入购物车立即询价 |
Datasheet |
Tube | J123F | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 380VAC, 110VDC - Max | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|

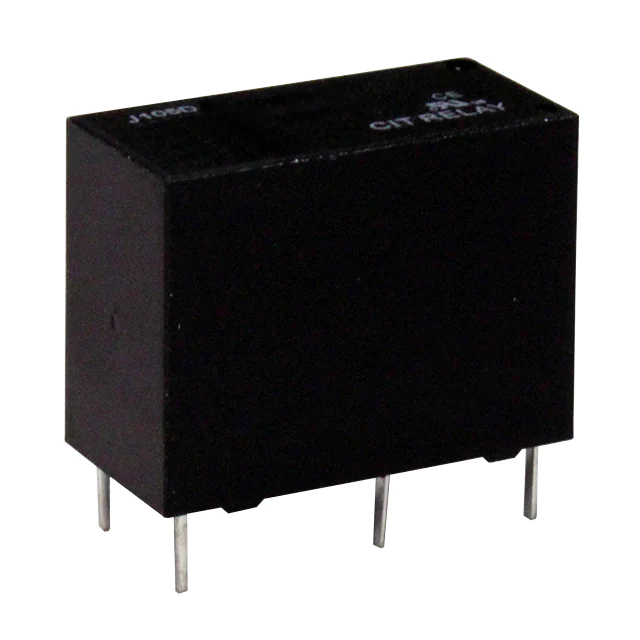

J105D1CS5VDC.45RELAY GEN PURPOSE SPDT 10A 5V |
2303 |
加入购物车立即询价 |
Datasheet |
Tray | J105D | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 277VAC - Max | 90.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
OJE-SS-112DM,000RELAY GEN PURPOSE SPST 5A 12V |
3576 |
加入购物车立即询价 |
Datasheet |
Bulk | OJE, OEG | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 37.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 0.6 VDC | 10 ms | 4 ms | -30°C ~ 85°C | Silver (Ag) |
|
G5Q-1-HA DC12RELAY GEN PURPOSE SPDT 10A 12V |
2971 |
加入购物车立即询价 |
Datasheet |
Tray | G5Q | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy, Cadmium Free |
|

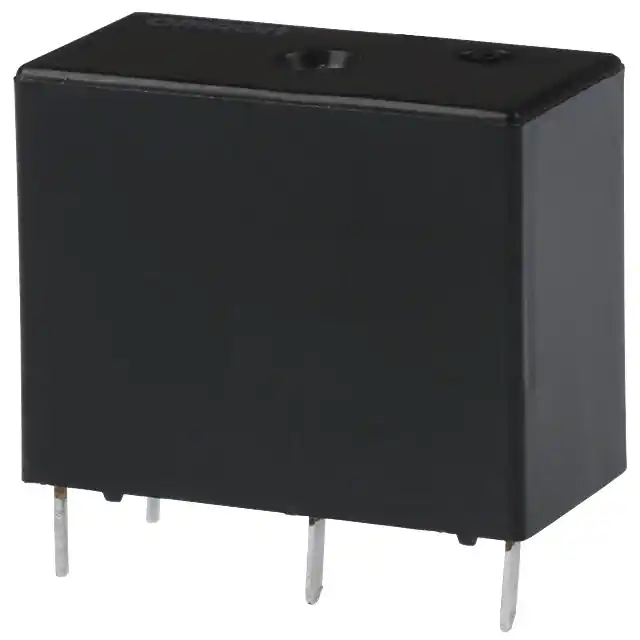

G5Q-1A DC5RELAY GEN PURPOSE SPST 10A 5V |
2126 |
加入购物车立即询价 |
Datasheet |
Tray | G5Q | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.75 VDC | 0.25 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy |
|
G5Q-1-HA DC5RELAY GEN PURPOSE SPDT 10A 5V |
3720 |
加入购物车立即询价 |
Datasheet |
Tray | G5Q | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 80 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.75 VDC | 0.25 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy, Cadmium Free |
|
|
J104A2C24VDC.40SRELAY GEN PURPOSE DPDT 3A 24V |
2220 |
加入购物车立即询价 |
Datasheet |
Tube | J104 | Active | Through Hole | 24VDC | DPDT (2 Form C) | 3 A | 250VAC, 220VDC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 4.5 ms | 1.5 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) |
|
|
G5Q-1 DC5RELAY GEN PURPOSE SPDT 10A 5V |
3941 |
加入购物车立即询价 |
Datasheet |
Tray | G5Q | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 80 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.75 VDC | 0.25 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy |
|
|
OJE-SS-124HM,000RELAY GEN PURPOSE SPST 10A 24V |
3045 |
加入购物车立即询价 |
Datasheet |
Bulk | OJE, OEG | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 18.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 1.2 VDC | 10 ms | 4 ms | -30°C ~ 70°C | Silver (Ag) |
|
|
G5Q-14 DC9RELAY GEN PURPOSE SPDT 10A 9V |
3400 |
加入购物车立即询价 |
Datasheet |
Tray | G5Q | Active | Through Hole | 9VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 44.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.45 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy |
