购物车| 图片 | 型号 | 库存 | 数量 | 数据表 | Package/Case | Packaging | Series | ProductStatus | Applications | PressureType | OperatingPressure | OutputType | Output | Accuracy | Voltage-Supply | PortSize | PortStyle | Features | TerminationStyle | MaximumPressure | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W117G-3H-VCR-C52L-DISPRESSURE SWITCH 1.6-30 PSIG |
3855 |
加入购物车立即询价 |
Datasheet |
Bulk | W117G | Active | - | Switch | 1.6PSI ~ 30PSI (11.03kPa ~ 206.84kPa) | SPDT | - | ±0.6PSI (±4.14kPa) | - | Male - 1/4 (6.35mm) VCR® | Threaded | - | Wire Leads | -30PSI (-206.84kPa) | -54°C ~ 107°C | |
|
W117V-3H-VCR-C52TB-DISVACUUM SWITCH 2.7-28.2 INHG |
2135 |
加入购物车立即询价 |
Datasheet |
Bulk | W117V | Active | - | Switch | 1.33PSI ~ 13.85PSI (9.14kPa ~ 95.5kPa) | SPDT | - | ±0.6PSI (±4.14kPa) | - | Male - 1/4 (6.35mm) VCR® | Threaded | - | Quick Connect - 0.250 (6.3mm) | 14.7PSI (101.25kPa) | -54°C ~ 107°C | |
|
W117G-5H-VCR-C52TB-DISPRESSURE SWITCH 3-50 PSIG |
3110 |
加入购物车立即询价 |
Datasheet |
Bulk | W117G | Active | - | Switch | 3PSI ~ 50PSI (20.68kPa ~ 344.74kPa) | SPDT | - | ±1PSI (±6.89kPa) | - | Male - 1/4 (6.35mm) VCR® | Threaded | - | Quick Connect - 0.250 (6.3mm) | 50PSI (344.74kPa) | -54°C ~ 107°C | |
|

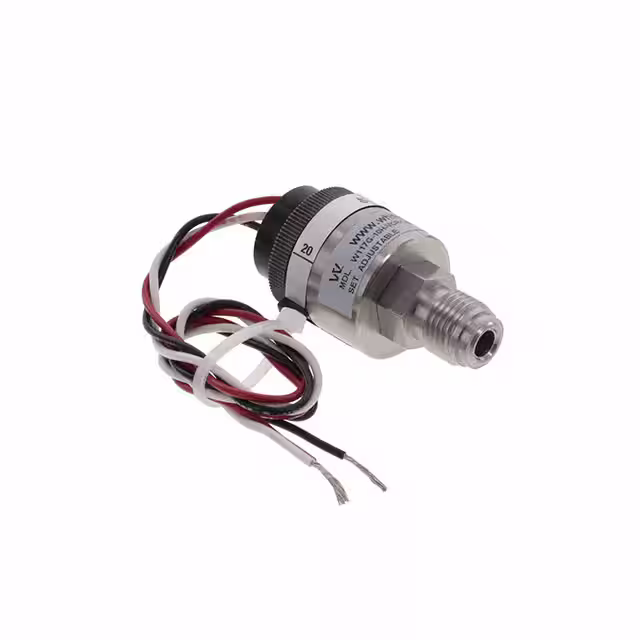

W117G-10H-VCR-C52L-DISPRESSURE SWITCH 4-100 PSIG |
3147 |
加入购物车立即询价 |
Datasheet |
Bulk | W117G | Active | - | Switch | 4.5PSI ~ 100PSI (31.03kPa ~ 689.48kPa) | SPDT | - | ±2PSI (±13.79kPa) | - | Male - 1/4 (6.35mm) VCR® | Threaded | - | Wire Leads | 100PSI (689.48kPa) | -54°C ~ 107°C | |
|
W117G-10H-VCR-C52TS-DISPRESSURE SWITCH 4-100 PSIG |
2404 |
加入购物车立即询价 |
Datasheet |
Bulk | W117G | Active | - | Switch | 4.5PSI ~ 100PSI (31.03kPa ~ 689.48kPa) | SPDT | - | ±2PSI (±13.79kPa) | - | Male - 1/4 (6.35mm) VCR® | Threaded | - | Screw Terminal | 100PSI (689.48kPa) | -54°C ~ 107°C | |
|
|
W117G-25H-VCR-C52L-DISPRESSURE SWITCH 9.7-250 PSIG |
2580 |
加入购物车立即询价 |
Datasheet |
Bulk | W117G | Active | - | Switch | 9.7PSI ~ 250PSI (66.88kPa ~ 1723.69kPa) | SPDT | - | ±5PSI (±34.47kPa) | - | Male - 1/4 (6.35mm) VCR® | Threaded | - | Wire Leads | 250PSI (1723.69kPa) | -54°C ~ 107°C | |
|
|
W117G-50H-VCR-C52TB-DISPRESSURE SWITCH 20-500 PSIG |
3686 |
加入购物车立即询价 |
Datasheet |
Bulk | W117G | Active | - | Switch | 20PSI ~ 500PSI (137.90kPa ~ 3447.38kPa) | SPDT | - | ±10PSI (±68.95kPa) | - | Male - 1/4 (6.35mm) VCR® | Threaded | - | Quick Connect - 0.250 (6.3mm) | 500PSI (3447.38kPa) | -54°C ~ 107°C | |
|
|
W117G-5H-VCR-C52L-DISPRESSURE SWITCH 3-50 PSIG |
3931 |
加入购物车立即询价 |
Datasheet |
Bulk | W117G | Active | - | Switch | 3PSI ~ 50PSI (20.68kPa ~ 344.74kPa) | SPDT | - | ±1PSI (±6.89kPa) | - | Male - 1/4 (6.35mm) VCR® | Threaded | - | Wire Leads | 50PSI (344.74kPa) | -54°C ~ 107°C | |
|
|
W117V-3H-VCR-C52L-DISVACUUM SWITCH 2.7-28.2 INHG |
3118 |
加入购物车立即询价 |
Datasheet |
Bulk | W117V | Active | - | Switch | 1.33PSI ~ 13.85PSI (9.14kPa ~ 95.5kPa) | SPDT | - | ±0.6PSI (±4.14kPa) | - | Male - 1/4 (6.35mm) VCR® | Threaded | - | Wire Leads | 14.7PSI (101.25kPa) | -54°C ~ 107°C | |
|
J205G-50S-VCR-C52TS-DISPRESSURE SWITCH 20-500 PSIG |
2692 |
加入购物车立即询价 |
Datasheet |
Bulk | J205G | Active | - | Switch | 20PSI ~ 500PSI (137.90kPa ~ 3447.38kPa) | SPDT | - | 20PSI (137.9kPa) | - | Male - 1/4 (6.35mm) VCR® | Threaded | - | Screw Terminal | 5000PSI (34473.79kPa) | -54°C ~ 107°C | |
|
77039-00000040-01SWITCH PRESSURE SPDT 5PSI |
3799 |
加入购物车立即询价 |
Datasheet |
Bulk | 5000 | Active | Industrial Automation | Switch | 5PSI (34.47kPa) | SPDT | - | - | - | Male - 1/8 (3.18mm) NPT | Threaded | - | Connector | 500PSI (3447.38kPa) | -40°C ~ 121.1°C | |
|

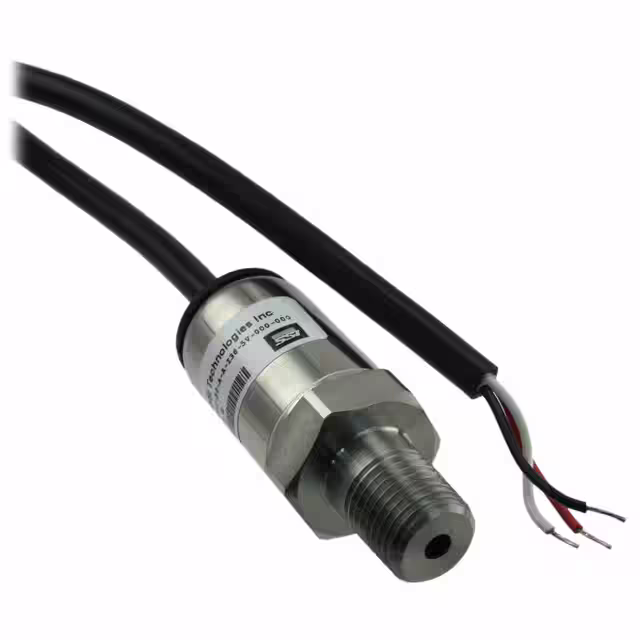

P51-50-A-A-I36-5V-000-000SENSOR 50PSIA 1/4NPT 5V |
3865 |
加入购物车立即询价 |
Datasheet |
Box | MediaSensor™ | Active | Industrial Automation | Absolute | 50PSI (344.74kPa) | Analog Voltage | 1 V ~ 5 V | ±1% | 8V ~ 30V | Male - 1/4 (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | |
|

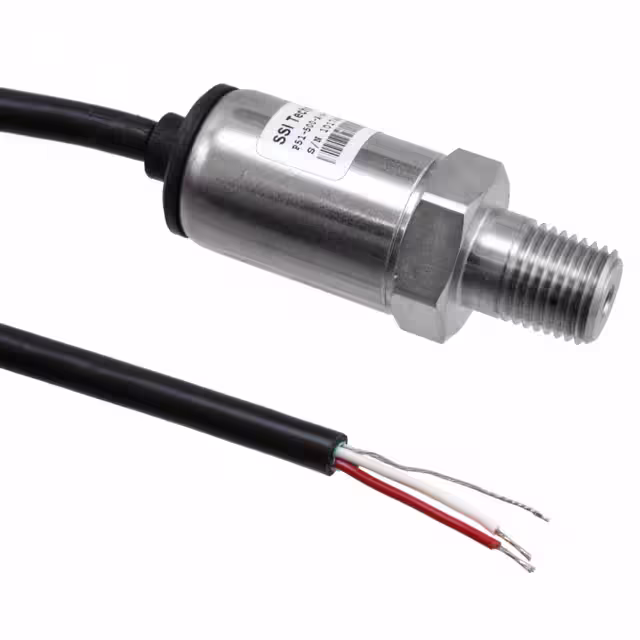

P51-500-A-A-I36-20MA-000-000SENSOR 500PSIA 1/4NPT 20MA |
3723 |
加入购物车立即询价 |
Datasheet |
Box | MediaSensor™ | Active | Industrial Automation | Absolute | 500PSI (3447.38kPa) | Analog Current | 4 mA ~ 20 mA | ±0.5% | 8V ~ 30V | Male - 1/4 (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 3' | - | -40°C ~ 105°C | |
|
M5244-000004-01KPGTRANSDUCER 1-5VDC 1000PSI |
3022 |
加入购物车立即询价 |
Datasheet |
Box | M5200 | Active | Industrial Automation | Vented Gauge | 1000PSI (6894.76kPa) | Analog Voltage | 1 V ~ 5 V | ±0.25% | 8V ~ 30V | Male - 7/16 (11.11mm) UNF | Threaded | Temperature Compensated | Connector | 2000PSI (13789.51kPa) | -40°C ~ 125°C | |
|

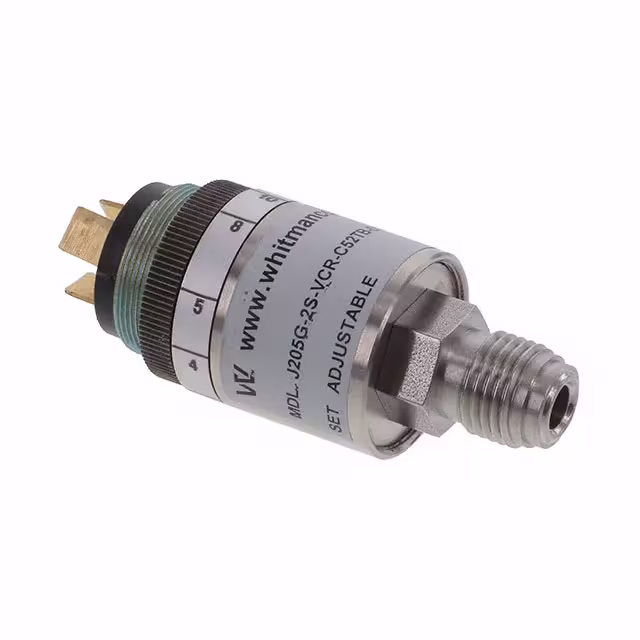

J205G-2S-VCR-C52TB-DISPRESSURE SWITCH 1.2-20 PSIG |
2402 |
加入购物车立即询价 |
Datasheet |
Bulk | J205G | Active | - | Switch | 1.2PSI ~ 20PSI (8.27kPa ~ 137.9kPa) | SPDT | - | ±0.8PSI (±5.52kPa) | - | Male - 1/4 (6.35mm) VCR® | Threaded | - | Quick Connect - 0.250 (6.3mm) | 5000PSI (34473.79kPa) | -54°C ~ 107°C | |
|

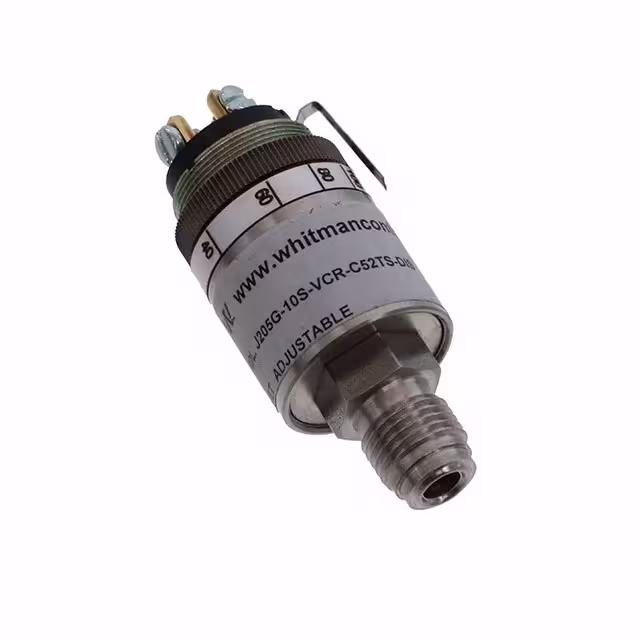

J205G-10S-VCR-C52TS-DISPRESSURE SWITCH 4-100 PSIG |
3934 |
加入购物车立即询价 |
Datasheet |
Bulk | J205G | Active | - | Switch | 4PSI ~ 100PSI (27.58kPa ~ 689.48kPa) | SPDT | - | ±4PSI (±27.58kPa) | - | Male - 1/4 (6.35mm) VCR® | Threaded | - | Screw Terminal | 5000PSI (34473.79kPa) | -54°C ~ 107°C | |
|
J205G-80S-VCR-C52TB-DISPRESSURE SWITCH 100-800 PSIG |
2465 |
加入购物车立即询价 |
Datasheet |
Bulk | J205G | Active | - | Switch | 100PSI ~ 800PSI (689.48kPa ~ 5515.81kPa) | SPDT | - | ±40PSI (±275.79kPa) | - | Male - 1/4 (6.35mm) VCR® | Threaded | - | Quick Connect - 0.250 (6.3mm) | 5000PSI (34473.79kPa) | -54°C ~ 107°C | |
|
J205G-25S-VCR-C52L-DISPRESSURE SWITCH 10-250 PSIG |
2523 |
加入购物车立即询价 |
Datasheet |
Bulk | J205G | Active | - | Switch | 10PSI ~ 250PSI (68.95kPa ~ 1723.69kPa) | SPDT | - | ±10PSI (±68.95kPa) | - | Male - 1/4 (6.35mm) VCR® | Threaded | - | Wire Leads | 5000PSI (34473.79kPa) | -54°C ~ 107°C | |
|
|
J205V-1S-VCR-C52TB-DISVACUUM SWITCH 2.2-28.2 INHG |
3218 |
加入购物车立即询价 |
Datasheet |
Bulk | J205V | Active | - | Switch | 1.07PSI ~ 13.85PSI (7.40kPa ~ 95.5kPa) | SPDT | - | ±0.8PSI (±5.52kPa) | - | Male - 1/4 (6.35mm) VCR® | Threaded | - | Quick Connect - 0.250 (6.3mm) | 5000PSI (34473.79kPa) | -54°C ~ 107°C | |
|
J205V-1S-VCR-C52TS-DISVACUUM SWITCH 2.2-28.2 INHG |
2522 |
加入购物车立即询价 |
Datasheet |
Bulk | J205V | Active | - | Switch | 1.07PSI ~ 13.85PSI (7.40kPa ~ 95.5kPa) | SPDT | - | ±0.8PSI (±5.52kPa) | - | Male - 1/4 (6.35mm) VCR® | Threaded | - | Screw Terminal | 5000PSI (34473.79kPa) | -54°C ~ 107°C |
