购物车| 图片 | 型号 | 库存 | 数量 | 数据表 | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HE721A1250RELAY REED SPST 500MA 12V |
2175 |
加入购物车立即询价 |
Datasheet |
Tube | HE700 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
|
HE721A2420RELAY REED SPST 500MA 24V |
3228 |
加入购物车立即询价 |
Datasheet |
Tube | HE700 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 11.1 mA | Non Latching | Electrostatic Shield | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
|
HE721A2440RELAY REED SPST 500MA 24V |
3613 |
加入购物车立即询价 |
Datasheet |
Tube | HE700 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 11.1 mA | Non Latching | EMI Shielded | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
|
HE721A2450RELAY REED SPST 500MA 24V |
2384 |
加入购物车立即询价 |
Datasheet |
Tube | HE700 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 11.1 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
|
HE721C0550RELAY REED SPDT 250MA 5V |
3077 |
加入购物车立即询价 |
Datasheet |
Tube | HE700 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 25 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -40°C ~ 85°C |
|
|
HE721C1220RELAY REED SPDT 250MA 12V |
2236 |
加入购物车立即询价 |
Datasheet |
Tube | HE700 | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 24 mA | Non Latching | Electrostatic Shield | PC Pin | - | 8 VDC | 1 VDC | 3 ms | 3 ms | -40°C ~ 85°C |
|
|
HE721C1240RELAY REED SPDT 250MA 12V |
3949 |
加入购物车立即询价 |
Datasheet |
Tube | HE700 | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 24 mA | Non Latching | EMI Shielded | PC Pin | - | 8 VDC | 1 VDC | 3 ms | 3 ms | -40°C ~ 85°C |
|
|
HE721C2420RELAY REED SPDT 250MA 24V |
3038 |
加入购物车立即询价 |
Datasheet |
Tube | HE700 | Active | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 12 mA | Non Latching | Electrostatic Shield | PC Pin | - | 16 VDC | 2 VDC | 3 ms | 3 ms | -40°C ~ 85°C |
|
|
HE721C2440RELAY REED SPDT 250MA 24V |
3342 |
加入购物车立即询价 |
Datasheet |
Tube | HE700 | Active | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 16 VDC | 2 VDC | 3 ms | 3 ms | -40°C ~ 85°C |
|
HE3671A1200RELAY REED SPST 500MA 12V |
3595 |
加入购物车立即询价 |
Datasheet |
Tube | HE3600 | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
|
HE3671A1210RELAY REED SPST 500MA 12V |
3948 |
加入购物车立即询价 |
Datasheet |
Tube | HE3600 | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
|
HE3671A2400RELAY REED SPST 500MA 24V |
2954 |
加入购物车立即询价 |
Datasheet |
Tube | HE3600 | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 11.1 mA | Non Latching | - | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
|
HE3671A2410RELAY REED SPST 500MA 24V |
2928 |
加入购物车立即询价 |
Datasheet |
Tube | HE3600 | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 11.1 mA | Non Latching | Diode | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
HE3321A0540RELAY REED SPST 500MA 5V |
3777 |
加入购物车立即询价 |
Datasheet |
Bulk | HE3300 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
|
HE3321A0440RELAY REED SPST 500MA 5V |
2102 |
加入购物车立即询价 |
Datasheet |
Tube | HE3300 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|

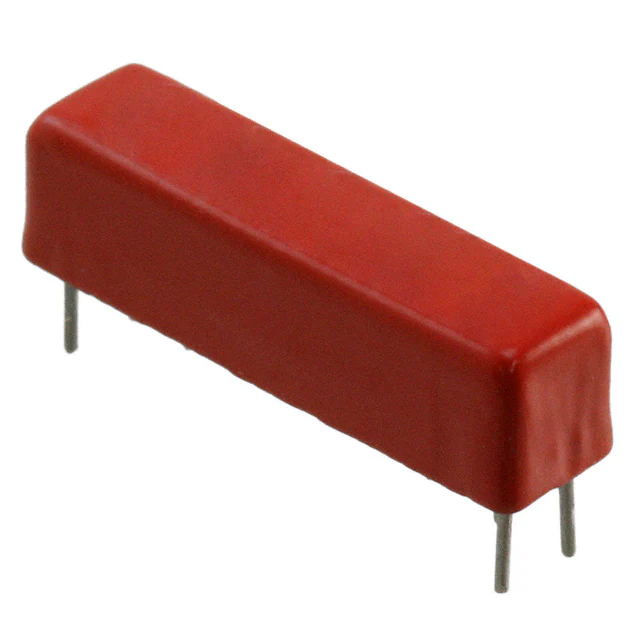

2274-05-021RELAY REED SPST 500MA 5V |
3179 |
加入购物车立即询价 |
Datasheet |
Tube | 2270 | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 50 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 2.5 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -20°C ~ 125°C |
|
SIL12-1A31-71MRELAY REED SPST 2A 12V |
3590 |
加入购物车立即询价 |
Datasheet |
Tube | SIL | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 500VAC, 500VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 1.2 ms | 1 ms | -20°C ~ 55°C |
|
DIP05-1C90-51FRELAY REED SPDT 250MA 5V |
2413 |
加入购物车立即询价 |
Datasheet |
Tube | DIP | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VAC, 175VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C |
|
|
3520-05-911RELAY REED DPST 1A 5V |
3295 |
加入购物车立即询价 |
Datasheet |
Tube | 3500 | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 1 A | 500VAC, 500VDC - Max | 25 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.4 VDC | 2 ms | 1 ms | -20°C ~ 85°C |
|
HI05-1A66REED RELAY SPST-NO 5V PCB |
3235 |
加入购物车立即询价 |
Datasheet |
Bulk | HI | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 0.7 ms | 0.05 ms | -20°C ~ 70°C |
